Exit LED Edge-Lit Exit Sign Aluminum
in Aluminum
by Nora Lighting
from the Exit collection
Original price
$113.50
-
Original price
$113.50
Original price
current price
$113.50
$113.50
-
$113.50
Current price
current price
$113.50
Factory Stock: 196

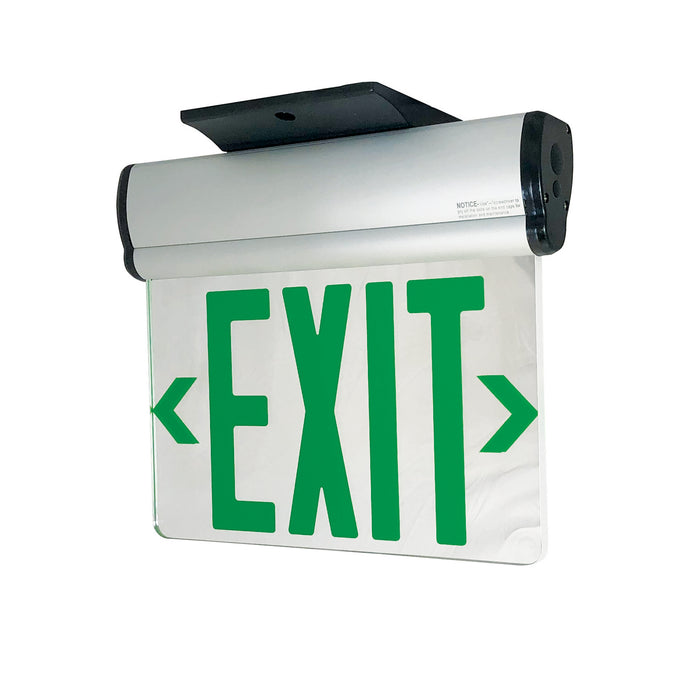

Architectural acrylic edge-lit sign for applications requiring low-profile, yet decorative appearance. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. 6" Green letters. 2-Circuit Input Voltage: 120/277VAC Wattage: 3W Finish: Aluminum Face: Edge-lit single face, mirrored acrylic. Face is constructed with 0.40" clear acrylic with rounded and finished edge for attractive appearance. Face contains green 6" high and 3/4" thick lettering inside face to comply with NFPA requirements. Reflective stick-on chevrons provided and are applied to rear of panel in order for light to reflect off the inner face of the chevron tape to provide a similiar effect as the lettering embedded inside the acrylic. Face can be adjusted in the field from 0º to 90º for wall, ceiling or sloped applications. Body: Extruded aluminum housing and acrylic panel. Mounting: Mounting hardware consist of 0.06" steel universal junction box bracket, 7/8" profile 0.11" die-cast aluminum bracket cover, screws, wire nuts, and silver-finished plastic plugs that are used to eliminate remaining knocouts once mounting configuration is selected. Testing: High charge / ready operation indicator light with test button and automatic reset. Listing: cULus Listed for Damp Locations, UL 924, Title 20, NFPA
Collection: Exit
SKU: 5007141
Wattage: 3.00
SKU:
5007141
Collection:
Color:
Aluminum
Safety Listing:
UL
Safety Rating:
Damp
Wattage:
3 Watts
Bulbs Included:
No
Dimmable:
No
Imported:
CHN
UPC:
732180704729
Lighting Design Spec Sheet:
Print Spec Sheet
Manufacturer Spec Sheet:
View Spec Sheet
Size Guide:
View Sizing Guide
Care:
- Glass, metal and bulbs use a duster once a week to prevent dust build up
- Linen/material use a lint roller
- Most lights can be wiped down with a damp cloth after light is off
