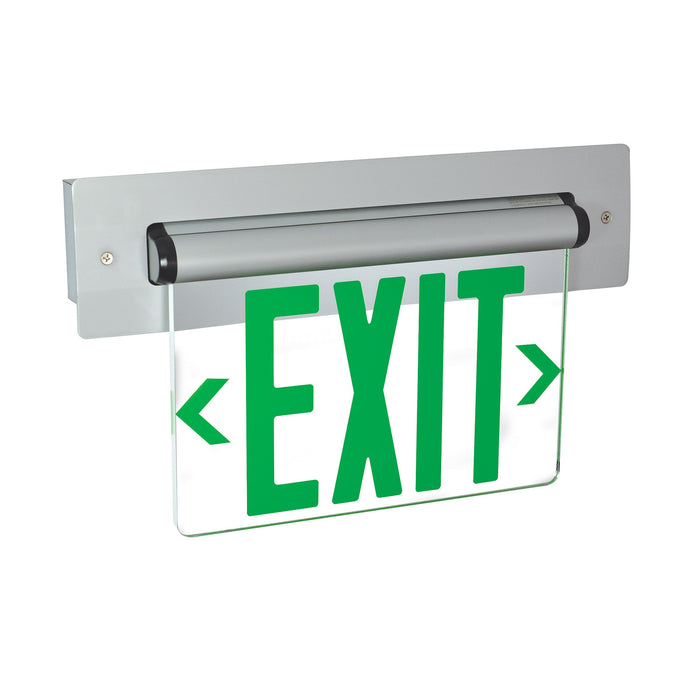

Exit LED Edge-Lit Exit Sign Green/Clear/Aluminum
in Green/Clear/Aluminum
by Nora Lighting
from the Exit collection
Original price
$168.50
-
Original price
$168.50
Original price
current price
$168.50
$168.50
-
$168.50
Current price
current price
$168.50
Factory Stock: 138
Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. 6" Green letters. Battery Backup. Input Voltage: 120/277VAC Wattage: 3W Finish: Aluminum Face: Edge-lit double face, clear acrylic. Face is constructed with 0.40" clear acrylic with rounded and finished edge for attractive appearance. Face contains green 6" high and 3/4" thick lettering inside face to comply with NFPA requirements. Reflective stick-on chevrons provided and are applied to rear of panel in order for light to reflect off the inner face of the chevron tape to provide a similiar effect as the lettering embedded inside the acrylic. Face can be adjusted in the field from 0º to 90º for wall, ceiling or sloped applications. Body: Galvanized steel housing with die-cast cover plate and acrylic panel. Mounting: Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling. Listing: cULus Listed for Damp Locations, UL 924, Title 20, NFPA
Collection: Exit
SKU: 5007599
Height: 10.63"
Width/Diameter: 12.00"
Length: 1.63"
Width: 12.00"
Height:10.63"
Length: 1.63"
Wattage: 3.00
SKU:
5007599
Collection:
Color:
Green/Clear/Aluminum
Safety Listing:
UL
Safety Rating:
Damp
Wattage:
3 Watts
Bulbs Included:
No
Dimmable:
No
Imported:
CHN
UPC:
732180704392
Width/Diameter:
12.00"
Height:
10.63"
Length:
1.63"
Lighting Design Spec Sheet:
Print Spec Sheet
Manufacturer Spec Sheet:
View Spec Sheet
Size Guide:
View Sizing Guide
Care:
- Glass, metal and bulbs use a duster once a week to prevent dust build up
- Linen/material use a lint roller
- Most lights can be wiped down with a damp cloth after light is off
Warning: This product can expose you to chemicals which are known to the State of California to cause cancer. For more information go to p65warnings.ca.gov/.
